Intergas Heat Curve

Heating Line Graph

X. Outside Temperature in °C.

Y. Supply Temperature in °C

A. Factory setting (Tmax CH = 80°C, Tmin CH = 25°C, Tmin out = -7°C, Tmax out = 25°C)

B. Example (Tmax CH = 60°C, Tmin CH = 25°C, Tmin out = -7°C, Tmax out = 25°C)

HRE, ECO RF Settings

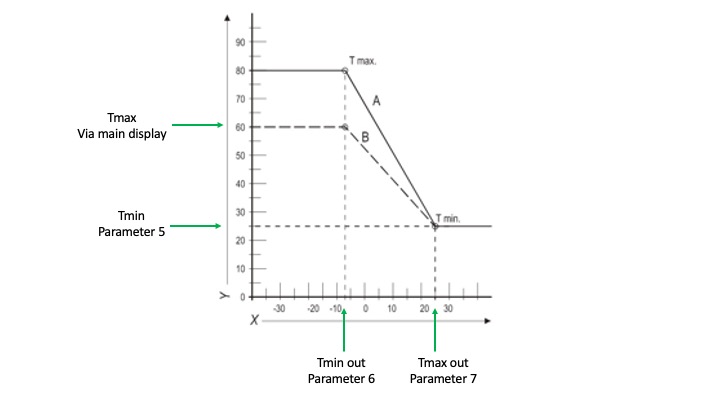

HRE,ECO-RF-heat-curve

Tmax CH – Set by display

Tmin CH – Parameter 5 – Control the minimum CH flow temperature

Tmin out – Parameter 6 – Controls the maximum CH temperature at minimum outside set temperature

Tmax out – Parameter 7 – Controls the minimum CH temperature at maximum outside set temperature

Xclusiv and Xtreme Setting

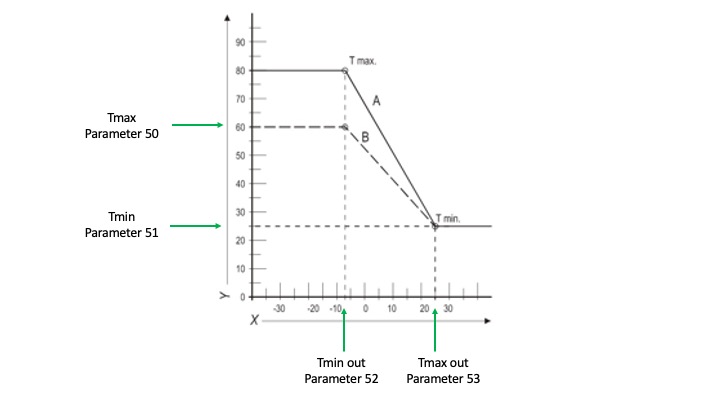

intergas-heatcurve-xtreme-xclusive

Tmax CH – Parameter 50 and Set by display

Tmin CH – Parameter 51 – Control the minimum CH flow temperature

Tmin out – Parameter 52 – Controls the maximum CH temperature at minimum outside set temperature

Tmax out – Parameter 53 – Controls the minimum CH temperature at maximum outside set temperature
